KEY FEATURES

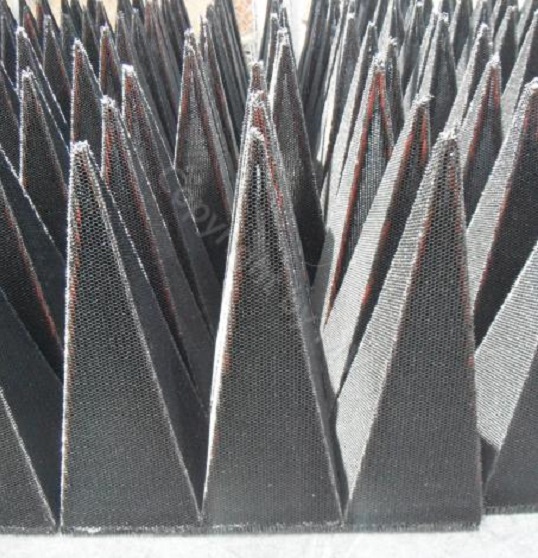

Honeycomb material allowing free circulation of air
High heat dissipation through natural convection or forced air ventilation
Handles 15 KW/m²; higher power handling capabilities with forced air
Weight: 12 Lbs. +/- 10% Humidity Factor
Withstands temperatures up to 176° C ( 350° F)
High fire retardancy
APPLICATIONS
All chamber types: aerospace & defense, telecom, automotive, academic & research institutes
SHAPE
Pyramidal
STANDARD BASE SIZE
2’x2’ (609 mm x 609 mm)
HEIGHT
36 in, 24 in, 18 in
Customizable sizes available upon request
OPERATING CONDITIONS
Temperature: up to 176°C (350° F)
Relative humidity: 55% RH +/-15%
