MEASUREMENT MAIN CAPABILITIES
Gain
Beamwidth
Cross polarization
Sidelobe levels
3D radiation pattern
Radiation pattern in any polarization (linear or circular)
FREQUENCY BANDS
CR-M12: 8 - 110 GHz
CR-M20: 4 - 110 GHz
MAX. SIZE OF DUT
Up to 20 in (50 cm) diameter
MAX. WEIGHT OF DUT
Up to 100 lbs (45 kg) for Azimuth (AZ) Only
Up to 29 lbs (13 kg) for Roll/AZ (according to EL axis)
Up to 50 lbs (23 kg) for Roll/AZ with AL-161-1P
TYPICAL DYNAMIC RANGE
80 dB
APPLICATIONS
Small-Size, High Frequency Compact Range Antenna Measurements
Mobile Compact Range Antenna Measurements
INDUSTRIES
Solution for Academic & Research Institutes
Solution for Aerospace & Defense
Solution for Automotive
Solution for Telecom
Serrated Edge Reflectors

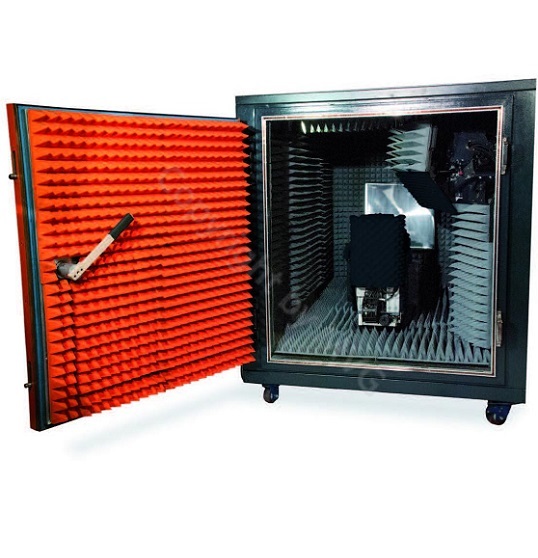

Mini-Compact Range
Rolled Edge Reflectors
