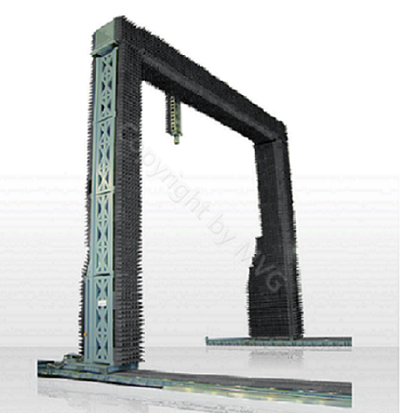

TScan - Tower Scanners

Near-field/Spherical

Near-field/Cylindrical

Near-field/Planar

Optional:

Gain

Beamwidth

Sidelobe levels

Radiation pattern in any polarizations- (linear)

Multi beam antenna measurement and calibration

Directivity

Cross-polar discrimination

3D radiation (limited coverage)

Antenna efficiency

Beam pointing properties

DUT is stationary, therefore the maximum weight of the DUT is limited by the foundation, antenna mount including any DUT alignment features, and building infrastructure.

80 dB, depending on the frequency and antenna gain

MiDAS with NF/FF planar transform

959 Spectrum (North America only)

MV-Echo

Insight

X – travel: up to 50 m

Y – travel: up to 26 m

Z – travel: up to 3 m

Polarization: 360°
